Hot Dipped Galvanised Grip Strut Perforated Metal Mesh Plank Grating Silver Welded

Name: Hot Dipped Galvanised Grip Strut Perforated Metal Mesh Plank Grating Silver Welded
Brand: X MESH
Price: 8.5 USD

Quality Hot Dipped Galvanised Grip Strut Perforated Metal Mesh Plank Grating Silver Welded wholesale

Brand Name : X MESH

Model Number : X MESH-Anti Slip Tread PlatesA07

Certification : ISO9001:2015

Place of Origin : Hebei P.R. China.

MOQ : 200pcs

Price : USD8.5-25.5/pc

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 8500pcs/week

Delivery Time : 5-7days

Packaging Details : Wrapped with plastic film and pallet packing

Name : Welded Steel Grating

Diamond Pattern : 5 Diamonds

Width : 23-1/4"

Channel Depth : 2-1/2"

Thickness : 11 Ga., 10 Ga., 9Ga.

Standard : ASTM A213

Application : For Industrial

Feature : easy install & long using life

Material : Mild Steel

Packing : Pallet or Wooden Case packing

Contact Now

Hot Dipped Galvanised Grip Strut Perforated Metal Mesh Plank Grating In Silver Welded Steel Grating

Welded Steel Grating Introduction:

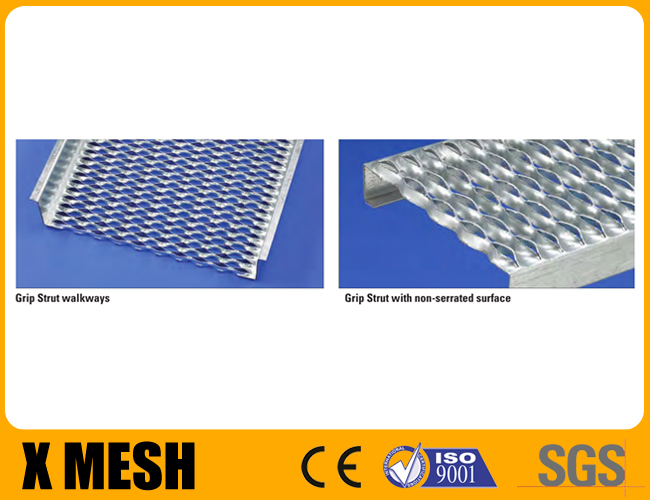

Grtp Strut Grating Plates are one-piece modules manufactured with integral side toe boards projecting above the walking surface of the flooring.

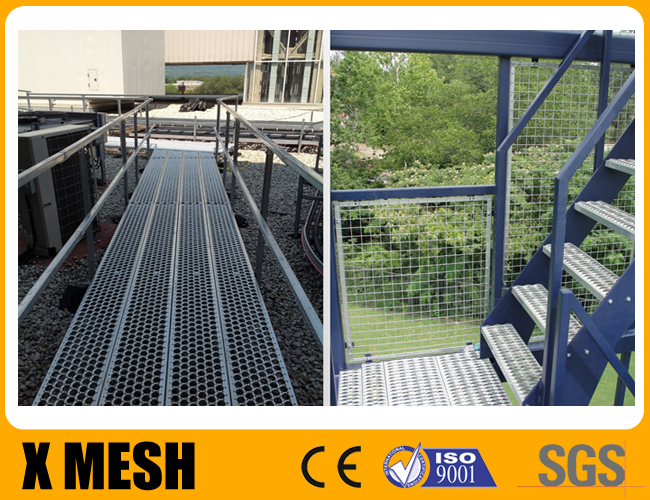

Ideal for elevated applications such as suspended walkways or conveyor catwalks, these channels provide safe, economical,

slip resistant options for long span walkways. Continuous spans can be accommodated by welding adjacent planks or

specifying splice plates as illustrated below.

Name	Welded Steel Grating
Diamond Pattern	5 Diamonds
Width	23-1/4"
Channel Depth	2-1/2"
Thickness	11 Ga., 10 Ga., 9Ga.
Standard	ASTM A213
Application	For Industrial
Feature	easy install & long using life
Material	Mild Steel
Packing	Pallet or Wooden Case packing

Welded Steel Grating Standard:

Implementation standards: GB: GB13296-97, GB/T14976-2002, GB/T14975-2002
American Standard: ASTM A312/A312M, ASTM A213/A213M, ASTM A269/A269M
German standard: DIN 2462
Japanese standard: JIS G3463
Other standards: can be produced according to customer's standard

Welded Steel Grating Specification:

2 Diamond / 9-1/4" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
2 Diamonds	9-1/4"	2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	9-1/4"	2-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	9-1/4"	3"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	9-1/4"	4"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")

3 Diamond / 13-3/4" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
3 Diamonds	13-3/4"	2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	13-3/4"	2-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	13-3/4"	3"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	13-3/4"	4"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")

5 Diamond / 23-1/4" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
5 Diamonds	23-1/4"	2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	23-1/4"	2-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	23-1/4"	3"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	23-1/4"	4"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")

6 Diamond / 27-3/4" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
6 Diamonds	27-3/4"	2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	27-3/4"	2-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	27-3/4"	3"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	27-3/4"	4"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")

8 Diamond / 36" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
8 Diamonds	36"	1-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	36"	2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	36"	2-1/2"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")
	36"	3"	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080"), 10 Ga. (.100")

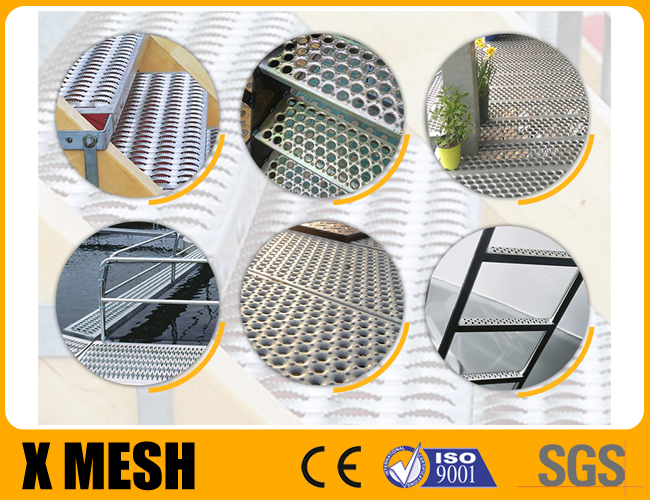

Welded Steel Grating Applications:

It's applies to secure channel, platform, stair treads in sewage treatment, waterworks,power plant,prospecting instrument

and other particular environment.

Welded Steel Grating Feature:

Economical to install In addition to low material cost and nominal erection cost, Grip Strut safety grating also helps save with its long-lasting, rust-resisting materials and finishes.

• Standard mill-galvanized finish resists corrosion to help provide lasting surfaces.

• High-strength aluminum and Types 304 and 316L stainless steel help provide maximum corrosion resistance.

• Black unpainted steel available for installations requiring hot dipped galvanized finish after fabrication.

• These light weight yet brawny panels permit substantial reduction in structural steel requirements.
